Gearboxes

Gearboxes

HY-070 Hypoid Gearbox-Motor Assembly

HY-070

HY-070 Hypoid Gearbox-Motor Assembly

The HY series hypoid gearboxes offer a high gear ratio in a small footprint. Hypoid gearing is more efficient than a worm drive and quieter than a bevel set. The HY-070 motor-gearbox assembly is available in both 5:1 and 10:1 ratios.

Features

HY-070

Specs

HY-070
Nominal Output Torque (Nm) 0.26
Max Output Torque (Nm) 0.37
Max Input Speed (rpm) 3000
Backlash (arc/min) <20

Downloads

HY070R-0XX CAD HY070R-0XX CAD IGS, STEP, and X_B CAD files, and dxf, pdf drawings

Options

Cool Muscle

NEMA11/28mm Cool Muscle Integrated Servo

CM1-X-11L30A

Fully closed loop servo system ideal for micro linear actuators, conveyors, and other miniature precision devices.

NEMA11/28mm Cool Muscle Integrated Servo

CM1-X-11S30A

Fully closed loop servo system ideal for micro linear actuators, grippers, and other miniature precision devices.

Tamagawa

NEMA11/28mm , 20W

TS4737

Part of Tamagawa's TBL-V series of motors.

NEMA11/28mm, 30W

TS4738

Part of Tamagawa's TBL-V series of motors.


HY-090 Hypoid Gearbox-Motor Assembly

HY-090

HY-090 Hypoid Gearbox-Motor Assembly

The HY series hypoid gearboxes offer a high gear ratio in a small footprint. Hypoid gearing is more efficient than a worm drive and quieter than a bevel set. The HY-090 comes in a 10:1 ratio.

Features

HY-090

Specs

HY-090
Maximum Output Speed (rpm) 300
Nominal Output Torque (Nm) 3.4
Max Output Torque (Nm) 5.0
Backlash (arc/min) <20

Downloads

HY090R-0X0 CAD HY090R-0X0 CAD IGS, STEP, and X_B CAD files, and dxf, pdf drawings

Options

Cool Muscle

NEMA 17/42mm Cool Muscle Integrated Servo

CM1-X-17S30C

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

NEMA17/42mm Cool Muscle Integrated Servo

CM1-X-17L30C

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

Tamagawa

NEMA17/42mm, 50W

TS4742

Part of Tamagawa's TBL-V series of motors.


MPC-023 Brake

MPC-023

MPC-023 Brake

Nema23, 24V, Power-off Brake

Features

MPC-023

Specs

MPC-023
Voltage 24
Static Torque (Nm) 0.8
Static Torque (oz.in) 113.3
Current Consumption (A) 0.27
Moment of Inertia (g-cm2) 27.7

Downloads

MPC-023 Brake CAD MPC-023 Brake CAD IGS, STEP, and X_B CAD files, dxf, pdf drawings

Options

Cool Muscle

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20C

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30C

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.


MPC-034 Brake

MPC-034

MPC-034 Brake

Nema34, 24V, Power-off Brake

Features

MPC-034

Specs

MPC-034
Voltage 24
Static Torque (Nm) 1.68
Static Torque (oz.in) 238
Current Consumption (A) 0.25
Moment of Inertia (g-cm2) 333

Downloads

MPC-034 Brake CAD MPC-034 Brake CAD IGS, STEP, and X_B CAD files, dxf, pdf drawings

Options


QLAS

QLAS

QLAS

Right angle gearbox with inline planetary stage. Available in 42, 60, and 90mm frame sizes.

Features

QLAS

Specs

QLAS
Backlash (arc/min) 7
Efficiency (%) 90

Downloads

R Series Gearbox Specification Sheet R Series Gearbox Specification Sheet R Series Gearbox Specification Sheet
QXAS-060 CAD QXAS-060 CAD 3D CAD files: IGS, x_b and STEP 2D Drawings: dxf, pdf
QXAS-042 CAD QXAS-042 CAD 3D CAD files: IGS, x_b and STEP 2D Drawings: dxf, pdf
QLAS-090 CAD QLAS-090 CAD 3D CAD files: IGS, x_b and STEP 2D Drawings: dxf, pdf

Options

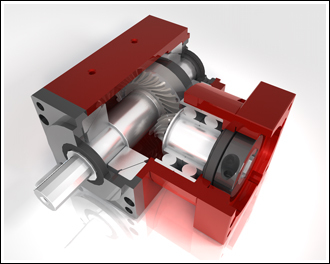

RLAS

RLAS

RLAS

Right angle, single shaft OR double shaft, helical gearbox. Available in 32, 42, 60, and 90mm frame sizes.

Features

RLAS

Specs

RLAS
Backlash (arc/min) 6
Efficiency (%) 95

Downloads

R Series Gearbox Specification Sheet R Series Gearbox Specification Sheet R Series Gearbox Specification Sheet
RXBS-060 CAD RXBS-060 CAD 3D CAD files: IGS, x_b and STEP 2D Drawings: dxf, pdf
RXAS-090 CAD RXAS-090 CAD 3D CAD files: IGS, x_b and STEP 2D Drawings: dxf, pdf
RXAS-060 CAD RXAS-060 CAD 3D CAD files: IGS, x_b and STEP 2D Drawings: dxf, pdf
RXAS-042 CAD RXAS-042 CAD 3D CAD files: IGS, x_b and STEP 2D Drawings: dxf, pdf
RLAS-032 CAD RLAS-032 CAD 3D CAD files: IGS, x_b and STEP 2D Drawings: dxf, pdf

Options

Cool Muscle

100W 56mm frame integrated AC Servo

CM2-X-56B10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

100W 60mm Frame Integrated AC Servo

CM2-X-60A10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

200W 56mm Frame Integrated Servo

CM2-X-56B20C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

400W 60mm Frame Integrated AC Servo

CM2-X-60A40C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

NEMA 17/42mm Cool Muscle Integrated Servo

CM1-X-17S30C

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30C

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20C

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

NEMA17/42mm Cool Muscle Integrated Servo

CM1-X-17L30C

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

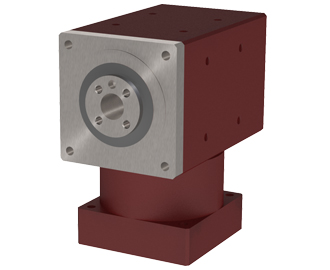

RLFS

RLFS

RLFS

Right angle, rotary stage OR double rotary stage style helical gearbox. Available in 42, 60, and 90mm frame sizes.

Features

RLFS

Specs

RLFS
Backlash (arc/min) 6
Efficiency (%) 95

Downloads

R Series Gearbox Specification Sheet R Series Gearbox Specification Sheet R Series Gearbox Specification Sheet
RXFS-090 CAD RXFS-090 CAD 3D CAD files: IGS, x_b and STEP 2D Drawings: dxf, pdf
RXFS-060 CAD RXFS-060 CAD 3D CAD files: IGS, x_b and STEP 2D Drawings: dxf, pdf
RXFS-042 CAD RXFS-042 CAD 3D CAD files: IGS, x_b and STEP 2D Drawings: dxf, pdf

Options

Cool Muscle

100W 56mm frame integrated AC Servo

CM2-X-56B10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

100W 60mm Frame Integrated AC Servo

CM2-X-60A10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

200W 56mm Frame Integrated Servo

CM2-X-56B20C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

400W 60mm Frame Integrated AC Servo

CM2-X-60A40C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

NEMA 17/42mm Cool Muscle Integrated Servo

CM1-X-17S30C

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30C

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20C

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

NEMA17/42mm Cool Muscle Integrated Servo

CM1-X-17L30C

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.


RLHS

RLHS

RLHS

Right angle, through-hole with collar OR double collared, helical gearbox. Available in 42, 60, and 90mm frame sizes.

Features

RLHS

Specs

RLHS
Backlash (arc/min) 6
Efficiency (%) 95

Downloads

R Series Gearbox Specification Sheet R Series Gearbox Specification Sheet R Series Gearbox Specification Sheet
RXHS-090 CAD RXHS-090 CAD 3D CAD files: IGS, x_b and STEP 2D Drawings: dxf, pdf
RXHS-060 CAD RXHS-060 CAD 3D CAD files: IGS, x_b and STEP 2D Drawings: dxf, pdf
RXHS-042 CAD RXHS-042 CAD 3D CAD files: IGS, x_b and STEP 2D Drawings: dxf, pdf

Options

Cool Muscle

100W 56mm frame integrated AC Servo

CM2-X-56B10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

100W 60mm Frame Integrated AC Servo

CM2-X-60A10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

200W 56mm Frame Integrated Servo

CM2-X-56B20C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

400W 60mm Frame Integrated AC Servo

CM2-X-60A40C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

NEMA 17/42mm Cool Muscle Integrated Servo

CM1-X-17S30C

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30C

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20C

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

NEMA17/42mm Cool Muscle Integrated Servo

CM1-X-17L30C

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

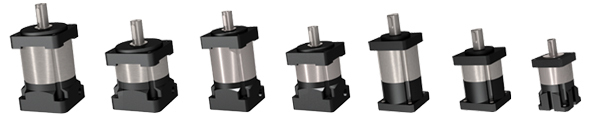

LX-042 single stage

LX-042 Single

LX-042 single stage

LX Series 42mm low backlash single stage planetary gearbox

Features

LX-042 Single

Specs

LX-042 Single
Nominal Output Torque (Nm) 11
Max Output Torque (Nm) 33
Max Input Speed (rpm) 6000
Backlash (arc/min) 6
Efficiency (%) 95

Downloads

LX-042 Single Stage CAD LX-042 Single Stage CAD 3D CAD files: IGS, x_b, STEP 2D Drawings: dxf, and pdf

Options

Cool Muscle

NEMA 17/42mm Cool Muscle Integrated Servo

CM1-X-17S30C

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

NEMA17/42mm Cool Muscle Integrated Servo

CM1-X-17L30C

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.


LX-042 double stage

LX-042 Double

LX-042 double stage

LX Series 42mm low backlash double stage planetary gearbox

Features

LX-042 Double

Specs

LX-042 Double
Nominal Output Torque (Nm) 13
Max Output Torque (Nm) 36
Max Input Speed (rpm) 6000
Backlash (arc/min) 10
Efficiency (%) 90

Downloads

LX-042 Double Stage CAD LX-042 Double Stage CAD 3D CAD files: IGS, x_b, STEP 2D Drawings: dxf, and pdf

Options

Cool Muscle

NEMA 17/42mm Cool Muscle Integrated Servo

CM1-X-17S30C

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

NEMA17/42mm Cool Muscle Integrated Servo

CM1-X-17L30C

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.


LX-060 single stage

LX-060 Single

LX-060 single stage

LX Series 60mm single stage planetary gearbox

Features

LX-060 Single

Specs

LX-060 Single
Nominal Output Torque (Nm) 22
Max Output Torque (Nm) 66
Max Input Speed (rpm) 6000
Backlash (arc/min) 6
Efficiency (%) 95

Downloads

LX-060 Single Stage CAD LX-060 Single Stage CAD 3D CAD files: IGS, x_b, STEP 2D Drawings: dxf, pdf

Options

Cool Muscle

100W 56mm frame integrated AC Servo

CM2-X-56B10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

100W 60mm Frame Integrated AC Servo

CM2-X-60A10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

200W 56mm Frame Integrated Servo

CM2-X-56B20C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

400W 60mm Frame Integrated AC Servo

CM2-X-60A40C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30C

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20C

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.


LX-060 double stage

LX-060 Double

LX-060 double stage

LX Series 60mm low backlash double stage planetary gearbox

Features

LX-060 Double

Specs

LX-060 Double
Nominal Output Torque (Nm) 26
Max Output Torque (Nm) 78
Max Input Speed (rpm) 6000
Backlash (arc/min) 10
Efficiency (%) 90

Downloads

LX-060 Double Stage CAD LX-060 Double Stage CAD 3D CAD files: IGS,x_b,STEP 2D Drawings: dxf, pdf

Options

Cool Muscle

100W 56mm frame integrated AC Servo

CM2-X-56B10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

100W 60mm Frame Integrated AC Servo

CM2-X-60A10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

200W 56mm Frame Integrated Servo

CM2-X-56B20C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

400W 60mm Frame Integrated AC Servo

CM2-X-60A40C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30C

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20C

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.


LX-090 single stage

LX-090 Single

LX-090 single stage

LX Series 90mm Planetary gearbox, single stage

Features

LX-090 Single

Specs

LX-090 Single
Nominal Output Torque (Nm) 63
Max Output Torque (Nm) 189
Max Input Speed (rpm) 5000
Backlash (arc/min) 6
Efficiency (%) 95

Downloads

LX-090 Single Stage CAD LX-090 Single Stage CAD 3D CAD files: IGS, x_b, STEP 2D Drawings: dxf, pdf

Options

Cool Muscle

100W 60mm Frame Integrated AC Servo

CM2-X-60A10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

400W 60mm Frame Integrated AC Servo

CM2-X-60A40C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.


LX-090 double stage

LX-090 Double

LX-090 double stage

LX Series 90mm planetary gearbox, double stage

Features

LX-090 Double

Specs

LX-090 Double
Nominal Output Torque (Nm) 72
Max Output Torque (Nm) 216
Max Input Speed (rpm) 5000
Backlash (arc/min) 9
Efficiency (%) 90

Downloads

LX-090 Double Stage CAD LX-090 Double Stage CAD 3D CAD files: IGS, x_b, STEP 2D Drawings: dxf, pdf

Options

Cool Muscle

100W 60mm Frame Integrated AC Servo

CM2-X-60A10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

400W 60mm Frame Integrated AC Servo

CM2-X-60A40C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.





Designed for Durability



Gearbox components: dual high quality taper bearings; helical bevel gears; dual ball bearings; axial compression






R series right angle gear box

Modern Technology Doesn’t Have to be Expensive

The R series right angle gear box employs modern design and mechanical traits such as helical gears and dual bearing supports in a versatile and affordable package.  Frame sizes range from 42 mm to 90 mm with a diverse range of output styles sure to fit your next machine.




Gears that Fit Standards

Myostat gear boxes are available in a range of sizes to fit most standard stepper and servo motors, with output variations to match your existing mechanical interfaces.

Contact Myostat Motion Control today for a solution that works.

Gearboxes ranging in size to fit most standard stepper and servo motors






Meet the Family

Myostat offers a wide range of gear box configurations, giving you the best fit solution for your machine design.









Hy Gear Box from KC Gear

A Clear Performer

The HY gear boxes from KG Gear offer a uniqe high ratio right angle solution for tight spaces. The HY gear box is available in 5:1 and 10:1 ratios. Additional gearing can be added in the motor mount to increase this to 20:1.

Myostat offers the HY series with option motor mounts and motors as a complete sub-assembly.

View the specification sheet and drawings.

Contact Myostat Motion Control for further information and to place an order.
