Integrated Actuators

Actuators

CSR-17 CM1 Integrated Lead Screw Actuator

CSR-17-CM1

CSR-17 CM1 Integrated Lead Screw Actuator

The CSR-17 line of rod style lead screw actuators are high force, space efficient, linear motion solutions for use in plastic injection, automated fixtures, consumer electronics assembly and other automated OEM devices. Coupled with a CM1 controller, the CSR-17 is a programmable, networkable, motion system.

Features

CSR-17-CM1

Specs

CSR-17-CM1
Stroke (mm) 12.7~50.8
Rated Force (N) 230
Max Speed (mm/sec) 150
Max Force (N) 900
Repetitive Accuracy (mm) 0.152
Actuator System (screw=0 belt=1) 0

Downloads

CSR-17-XX-XXX-CM1 CSR-17-XX-XXX-CM1 3D model: IGS,x_b,STEP 2D drawings: dxf,pdf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cool Muscle

NEMA17/42mm Cool Muscle Integrated Servo

CM1-X-17L30

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.


CSR-23 CM1 Integrated Lead Screw Actuator

CSR-23-CM1

CSR-23 CM1 Integrated Lead Screw Actuator

The CSR-23 line of rod style lead screw actuators are high force, space efficient, linear motion solutions for use in plastic injection, automated fixtures, consumer electronics assembly and other automated OEM devices. Coupled with a CM1 controller, the CSR-23 is a programmable networkable, motion system that offers a higher force than the CSR-17.

Features

CSR-23-CM1

Specs

CSR-23-CM1
Stroke (mm) 12.7 ~ 50.8
Rated Force (N) 920
Max Speed (mm/sec) 150
Max Force (N) 1800
Repetitive Accuracy (mm) 0.152
Actuator System (screw=0 belt=1) 0

Downloads

CSR-23-XX-XXX-CM1 CSR-23-XX-XXX-CM1 3D model: IGS,x_b,STEP 2D drawing: dxf,pdf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cool Muscle

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.


Belt Driven Linear Actuator

PSC

Belt Driven Linear Actuator

Features zero backlash belt to pulley design and corrosion resistant components. Up to 1.7m of travel.

Features

PSC

Specs

PSC
Stroke (mm) 271 ~ 1771
Rated Force (N) 445
Max Speed (mm/sec) 1270
Max Force (N) 445
Repetitive Accuracy (mm) 0.025
Moment A Imperial (lb ft) 8.41
Moment A Metric (Nm) 11.4
Moment B Imperial (lb ft) 8.26
Moment B Metric (Nm) 11.2
Moment C Imperial (lb ft) 2.07
Moment C Metric (Nm) 2.8
Actuator System (screw=0 belt=1) 1

Downloads

MSA-PSC MSA-PSC 3D CAD files: IGS,x_b,STEP 2D drawings: pdf

Options

Cool Muscle

100W 56mm frame integrated AC Servo

CM2-X-56B10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

100W 60mm Frame Integrated AC Servo

CM2-X-60A10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

200W 56mm Frame Integrated Servo

CM2-X-56B20C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

400W 60mm Frame Integrated AC Servo

CM2-X-60A40C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

Gearboxes

LX-060 single stage

LX-060 Single

LX Series 60mm single stage planetary gearbox

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.

Tamagawa

NEMA23/56.4mm, 100W

TS4746

Part of Tamagawa's TBL-V series of motors.

NEMA23/56.4mm, 200W

TS4747

Part of Tamagawa's TBL-V series of motors.


Belt Driven Linear Actuator

M6S

Belt Driven Linear Actuator

High speed belt driven linear actuator made of corrosion resistant materials and featuring a zero backlash belt to pulley design. Up to 2.15m of travel.

Features

M6S

Specs

M6S
Stroke (mm) 419 ~ 2169
Rated Force (N) 225
Max Speed (mm/sec) 10,600
Max Force (N) 225
Repetitive Accuracy (mm) 0.025
Moment A Imperial (lb ft) 9.81
Moment A Metric (Nm) 13.3
Moment B Imperial (lb ft) 5.61
Moment B Metric (Nm) 7.6
Moment C Imperial (lb ft) 3.61
Moment C Metric (Nm) 4.9
Actuator System (screw=0 belt=1) 1

Downloads

MSA-M6S MSA-M6S 3D CAD files: IGS,x_b,STEP 2D drawings: pdf

Options

Cool Muscle

100W 56mm frame integrated AC Servo

CM2-X-56B10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

100W 60mm Frame Integrated AC Servo

CM2-X-60A10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

200W 56mm Frame Integrated Servo

CM2-X-56B20C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

400W 60mm Frame Integrated AC Servo

CM2-X-60A40C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.

Tamagawa

NEMA23/56.4mm, 100W

TS4746

Part of Tamagawa's TBL-V series of motors.

NEMA23/56.4mm, 200W

TS4747

Part of Tamagawa's TBL-V series of motors.

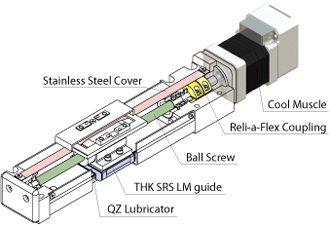

PA15 Series Ball Screw Actuator

PA15

PA15 Series Ball Screw Actuator

PA15 Ball Screw Actuator with a 1mm pitch screw and stainless steel body. For small stroke applications such as repetitive testing or microscopic visualization automation.

Features

PA15

Specs

PA15
Stroke (mm) 31 ~ 156
Rated Force (N) 152
Max Speed (mm/sec) 50
Max Force (N) 152
Repetitive Accuracy (mm) 0.01
Moment A Imperial (lb ft) 8.92
Moment A Metric (Nm) 12.1
Moment B Imperial (lb ft) 8.92
Moment B Metric (Nm) 12.1
Moment C Imperial (lb ft) 28.03
Moment C Metric (Nm) 38
Actuator System (screw=0 belt=1) 0

Downloads

PA/SPA Naming Convention PA/SPA Naming Convention pdf describing the product number conventions of the PA/SPA series actuators
PA-15 CAD PA-15 CAD 3D models: IGS,x_b,STEP 2D drawings: dxf, pdf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cables

CM1C3-2000

CM1C3-2000

2m DB9 Serial cable for CM1 series Cool Muscle

Cool Muscle

NEMA11/28mm Cool Muscle Integrated Servo

CM1-X-11L30

Fully closed loop servo system ideal for micro linear actuators, conveyors, and other miniature precision devices.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.

Tamagawa

NEMA8/20mm, 10W

TS4735

Part of Tamagawa's TBL-V series of motors.


PA20 Series Ball Screw Actuator

PA20

PA20 Series Ball Screw Actuator

The PA20 series ball screw actuator comes with a precision screw in pitches of 1mm and 6mm, with strokes up to 141mm. The dual bearing tracks result in a very strong carriage assembly handling greater moment loads.

Features

PA20

Specs

PA20
Stroke (mm) 41.5 ~ 141
Rated Force (N) 310
Max Speed (mm/sec) 600
Max Force (N) 310
Repetitive Accuracy (mm) 0.01
Moment A Imperial (lb ft) 22.86
Moment A Metric (Nm) 31
Moment B Imperial (lb ft) 22.86
Moment B Metric (Nm) 31
Moment C Imperial (lb ft) 61.22
Moment C Metric (Nm) 83
Actuator System (screw=0 belt=1) 0

Downloads

PA/SPA Naming Convention PA/SPA Naming Convention pdf describing the product number conventions of the PA/SPA series actuators
PA-20 CAD PA-20 CAD 3D models: IGS,x_b,STEP 2D drawings: dxf,pdf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cables

CM1C3-2000

CM1C3-2000

2m DB9 Serial cable for CM1 series Cool Muscle

Cool Muscle

NEMA 17/42mm Cool Muscle Integrated Servo

CM1-X-17S30

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

NEMA11/28mm Cool Muscle Integrated Servo

CM1-X-11S30

Fully closed loop servo system ideal for micro linear actuators, grippers, and other miniature precision devices.

NEMA11/28mm Cool Muscle Integrated Servo

CM1-X-11L30

Fully closed loop servo system ideal for micro linear actuators, conveyors, and other miniature precision devices.

NEMA17/42mm Cool Muscle Integrated Servo

CM1-X-17L30

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.

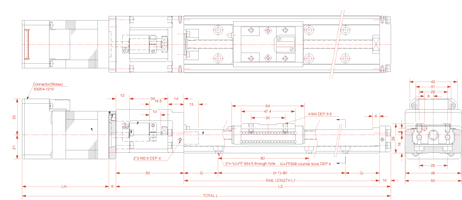

PA26 Series Ball Screw Actuator

PA26

PA26 Series Ball Screw Actuator

The PA26 series ball screw actuator comes with a precision screw in pitches of 2mm and 6mm, with strokes up to 211mm. The dual bearing tracks result in a very strong carriage assembly handling greater moment loads.

Features

PA26

Specs

PA26
Stroke (mm) 69 ~ 219
Rated Force (N) 155
Max Speed (mm/sec) 100
Max Force (N) 155
Repetitive Accuracy (mm) 0.01
Moment A Imperial (lb ft) 61.96
Moment A Metric (Nm) 84
Moment B Imperial (lb ft) 61.96
Moment B Metric (Nm) 84
Moment C Imperial (lb ft) 153.41
Moment C Metric (Nm) 208
Actuator System (screw=0 belt=1) 0

Downloads

PA/SPA Naming Convention PA/SPA Naming Convention pdf describing the product number conventions of the PA/SPA series actuators
PA-26 CAD PA-26 CAD 3D models: IGS,x_b,STEP 2D drawings: dxf,pdf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cables

CM1C3-2000

CM1C3-2000

2m DB9 Serial cable for CM1 series Cool Muscle

Cool Muscle

NEMA 17/42mm Cool Muscle Integrated Servo

CM1-X-17S30

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

NEMA17/42mm Cool Muscle Integrated Servo

CM1-X-17L30

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.


PA30 Series Ball Screw Actuator

PA30

PA30 Series Ball Screw Actuator

The PA26 series ball screw actuator comes with a precision screw in pitches of 6mm and 10mm, with strokes up to 508mm. The dual bearing tracks result in a very strong carriage assembly handling greater moment loads

Features

PA30

Specs

PA30
Stroke (mm) 58.8 ~ 508.8
Max Speed (mm/sec) 500
Repetitive Accuracy (mm) 0.01
Moment A Imperial (lb ft) 122.4
Moment A Metric (Nm) 166
Moment B Imperial (lb ft) 122.4
Moment B Metric (Nm) 166
Moment C Imperial (lb ft) 315.7
Moment C Metric (Nm) 428
Actuator System (screw=0 belt=1) 0

Downloads

PA/SPA Naming Convention PA/SPA Naming Convention pdf describing the product number conventions of the PA/SPA series actuators
PA-30 CAD PA-30 CAD 3D model: IGS,x_b,STEP 2D drawing: dxf,pdf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cables

CM1C3-2000

CM1C3-2000

2m DB9 Serial cable for CM1 series Cool Muscle

Cool Muscle

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.


PA33 Series Ball Screw Actuator

PA33

PA33 Series Ball Screw Actuator

The PA33 series ball screw actuator comes with a precision screw in pitches of 6mm and 10mm with strokes up to 611mm. The dual bearing tracks result in a very strong carriage assembly handling greater moment loads.

Features

PA33

Specs

PA33
Stroke (mm) 61 ~ 611
Rated Force (N) 820
Max Speed (mm/sec) 500
Max Force (N) 820
Repetitive Accuracy (mm) 0.01
Moment A Imperial (lb ft) 122.44
Moment A Metric (Nm) 166
Moment B Imperial (lb ft) 122.44
Moment B Metric (Nm) 166
Moment C Imperial (lb ft) 315.68
Moment C Metric (Nm) 428
Actuator System (screw=0 belt=1) 0

Downloads

PA/SPA Naming Convention PA/SPA Naming Convention pdf describing the product number conventions of the PA/SPA series actuators
PA-33 CAD Files PA-33 CAD Files 3D models: IGS,x_b,STEP 2D drawings: dxf,pdf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cables

CM1C3-2000

CM1C3-2000

2m DB9 Serial cable for CM1 series Cool Muscle

CM2US2-1800W

CM2US2-1800W

CM2 USB Communications Cable

Cool Muscle

100W 56mm frame integrated AC Servo

CM2-X-56B10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

100W 60mm Frame Integrated AC Servo

CM2-X-60A10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

200W 56mm Frame Integrated Servo

CM2-X-56B20C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

400W 60mm Frame Integrated AC Servo

CM2-X-60A40C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.

Tamagawa

NEMA17/42mm, 50W

TS4742

Part of Tamagawa's TBL-V series of motors.

NEMA23/56.4mm, 100W

TS4746

Part of Tamagawa's TBL-V series of motors.

NEMA23/56.4mm, 200W

TS4747

Part of Tamagawa's TBL-V series of motors.


SPA20 Series Caged Ball Screw Actuator

SPA20

SPA20 Series Caged Ball Screw Actuator

The SPA20 series caged ball screw actuator comes with a precision screw in pitches of 1mm and 6mm, with strokes up to 140mm. The SPA series is a modification of the PA series offering a caged ball track which reduces dust output, noise, wear on the system and sports an overall greater life span than the PA series.

Features

SPA20

Specs

SPA20
Stroke (mm) 40.9 ~ 140.9
Max Speed (mm/sec) 300
Repetitive Accuracy (mm) 0.01
Moment A Imperial (lb ft) 28.03
Moment A Metric (Nm) 38
Moment B Imperial (lb ft) 28.03
Moment B Metric (Nm) 38
Moment C Imperial (lb ft) 72.28
Moment C Metric (Nm) 98
Actuator System (screw=0 belt=1) 0

Downloads

SPA-20 CAD SPA-20 CAD 3D model: IGS,x_b,STEP 2D drawing: dxf,pdf
PA/SPA Naming Convention PA/SPA Naming Convention pdf describing the product number conventions of the PA/SPA series actuators
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cool Muscle

NEMA11/28mm Cool Muscle Integrated Servo

CM1-X-11S30

Fully closed loop servo system ideal for micro linear actuators, grippers, and other miniature precision devices.

NEMA11/28mm Cool Muscle Integrated Servo

CM1-X-11L30

Fully closed loop servo system ideal for micro linear actuators, conveyors, and other miniature precision devices.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.


SPA26 Series Caged Ball Screw Actuator

SPA26

SPA26 Series Caged Ball Screw Actuator

The SPA26 series caged ball screw actuator comes with a precision screw in pitches of 2mm and 6mm, with strokes up to 218mm. The SPA series is a modification of the PA series offering a caged ball track which reduces dust output, noise, wear on the system and sports an overall greater life span than the PA series.

Features

SPA26

Specs

SPA26
Stroke (mm) 68.4 ~ 218.4
Max Speed (mm/sec) 300
Repetitive Accuracy (mm) 0.01
Moment A Imperial (lb ft) 86.29
Moment A Metric (Nm) 117
Moment B Imperial (lb ft) 86.29
Moment B Metric (Nm) 117
Moment C Imperial (lb ft) 195.5
Moment C Metric (Nm) 265
Actuator System (screw=0 belt=1) 0

Downloads

SPA-26 CAD SPA-26 CAD 3D model: IGS,x_b,STEP 2D drawing: dxf,pdf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cool Muscle

NEMA 17/42mm Cool Muscle Integrated Servo

CM1-X-17S30

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

NEMA17/42mm Cool Muscle Integrated Servo

CM1-X-17L30

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.


SPA33 Series Caged Ball Screw Actuator

SPA33

SPA33 Series Caged Ball Screw Actuator

The SPA33 series caged ball screw actuator comes with a precision screw in pitches of 6mm, 10mm & 20mm with strokes up to 605mm. The SPA series is a modification of the PA series offering a caged ball track which reduces dust output, noise, wear on the system and sports an overall greater life span than the PA series.

Features

SPA33

Specs

SPA33
Stroke (mm) 55 ~ 605
Max Speed (mm/sec) 595
Repetitive Accuracy (mm) 0.01
Moment A Imperial (lb ft) 127.6
Moment A Metric (Nm) 173
Moment B Imperial (lb ft) 127.6
Moment B Metric (Nm) 173
Moment C Imperial (lb ft) 312.7
Moment C Metric (Nm) 424
Actuator System (screw=0 belt=1) 0

Downloads

PA/SPA Naming Convention PA/SPA Naming Convention pdf describing the product number conventions of the PA/SPA series actuators
SPA-33 CAD SPA-33 CAD 3D model: IGS,x_b,STEP 2D drawing: dxf,pdf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cool Muscle

200W 56mm Frame Integrated Servo

CM2-X-56B20C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.


RD-45T Ball Screw Cylinder

RD-45T

RD-45T Ball Screw Cylinder

RD-45T Series electric cylinders are capable of forces up to 400N with speeds up to 600mm/sec. Screw pitches of 6mm and 12mm are available with strokes up to 200mm.

Features

RD-45T

Specs

RD-45T
Stroke (mm) 200
Rated Force (N) 67
Max Speed (mm/sec) 600
Max Force (N) 201
Repetitive Accuracy (mm) 0.02
Actuator System (screw=0 belt=1) 0

Downloads

RD-45T RD-45T 3D Models: IGS,x_b,STEP 2D Drawings: dxf, pdf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cables

CM1C3-2000

CM1C3-2000

2m DB9 Serial cable for CM1 series Cool Muscle

Cool Muscle

100W 56mm frame integrated AC Servo

CM2-X-56B10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

200W 56mm Frame Integrated Servo

CM2-X-56B20C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

NEMA 17/42mm Cool Muscle Integrated Servo

CM1-X-17S30

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

NEMA17/42mm Cool Muscle Integrated Servo

CM1-X-17L30

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.

Tamagawa

NEMA17/42mm, 50W

TS4742

Part of Tamagawa's TBL-V series of motors.

NEMA23/56.4mm, 100W

TS4746

Part of Tamagawa's TBL-V series of motors.

NEMA23/56.4mm, 200W

TS4747

Part of Tamagawa's TBL-V series of motors.


RD-55T Ball Screw Cylinder

RD-55T

RD-55T Ball Screw Cylinder

RD-55T Series ball screw cylinders are capable of forces up to 800N with speeds up to 600mm/sec. Both 6mm and 12mm pitch screws are available with strokes up to 300mm.

Features

RD-55T

Specs

RD-55T
Stroke (mm) 300
Rated Force (N) 123
Max Speed (mm/sec) 600
Max Force (N) 370
Repetitive Accuracy (mm) 0.02
Actuator System (screw=0 belt=1) 0

Downloads

RD-55T RD-55T 3D Models: IGS,x_b,STEP 2D Drawings: dxf, pdf
BSU-55 CAD BSU-55 CAD 3D Models: IGS,x_b,STEP 2D Drawings: dxf, pdf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cables

CM1C3-2000

CM1C3-2000

2m DB9 Serial cable for CM1 series Cool Muscle

CM2US2-1800W

CM2US2-1800W

CM2 USB Communications Cable

Cool Muscle

100W 56mm frame integrated AC Servo

CM2-X-56B10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

200W 56mm Frame Integrated Servo

CM2-X-56B20C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.

Tamagawa

NEMA23/56.4mm, 100W

TS4746

Part of Tamagawa's TBL-V series of motors.

NEMA23/56.4mm, 200W

TS4747

Part of Tamagawa's TBL-V series of motors.


RL-45T Series Ball Screw Actuator

RL-45T

RL-45T Series Ball Screw Actuator

A covered, self-lubricating, ball screw actuator with screw pitches of 6mm and 12mm, with strokes to 500mm

Features

RL-45T

Specs

RL-45T
Stroke (mm) 500
Rated Force (N) 80
Max Speed (mm/sec) 600
Max Force (N) 240
Repetitive Accuracy (mm) 0.02
Moment A Imperial (lb ft) 8.85
Moment A Metric (Nm) 12
Moment B Imperial (lb ft) 8.85
Moment B Metric (Nm) 12
Moment C Imperial (lb ft) 22.86
Moment C Metric (Nm) 31
Actuator System (screw=0 belt=1) 0

Downloads

RL-45T RL-45T 3D model: IGS,x_b,STEP 2D drawing:dxf,pdf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cables

CM1C3-2000

CM1C3-2000

2m DB9 Serial cable for CM1 series Cool Muscle

CM2US2-1800W

CM2US2-1800W

CM2 USB Communications Cable

Cool Muscle

100W 56mm frame integrated AC Servo

CM2-X-56B10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

NEMA 17/42mm Cool Muscle Integrated Servo

CM1-X-17S30

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

NEMA17/42mm Cool Muscle Integrated Servo

CM1-X-17L30

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.

Tamagawa

NEMA17/42mm, 50W

TS4742

Part of Tamagawa's TBL-V series of motors.

NEMA23/56.4mm, 100W

TS4746

Part of Tamagawa's TBL-V series of motors.

NEMA23/56.4mm, 200W

TS4747

Part of Tamagawa's TBL-V series of motors.


RL-60T Series Ball Screw Actuator

RL-60T

RL-60T Series Ball Screw Actuator

A covered, self-lubricating, ball screw actuator with screw pitches of 6mm and 12mm, with strokes to 700mm

Features

RL-60T

Specs

RL-60T
Stroke (mm) 700
Rated Force (N) 133
Max Speed (mm/sec) 600
Max Force (N) 402
Repetitive Accuracy (mm) 0.02
Moment A Imperial (lb ft) 18.96
Moment A Metric (Nm) 25.7
Moment B Imperial (lb ft) 18.96
Moment B Metric (Nm) 25.7
Moment C Imperial (lb ft) 42.78
Moment C Metric (Nm) 58
Actuator System (screw=0 belt=1) 0

Downloads

RL-60T RL-60T 3D model: IGS,x_b,STEP 2D drawing: dxf,pdf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cables

CM1C3-2000

CM1C3-2000

2m DB9 Serial cable for CM1 series Cool Muscle

CM2US2-1800W

CM2US2-1800W

CM2 USB Communications Cable

Cool Muscle

100W 56mm frame integrated AC Servo

CM2-X-56B10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

100W 60mm Frame Integrated AC Servo

CM2-X-60A10C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

200W 56mm Frame Integrated Servo

CM2-X-56B20C

A fully integrated servo system including numerous built-in functions with I/O designed to shorten design time and increase performance.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.

Tamagawa

NEMA23/56.4mm, 100W

TS4746

Part of Tamagawa's TBL-V series of motors.

NEMA23/56.4mm, 200W

TS4747

Part of Tamagawa's TBL-V series of motors.


RRA11 Racktuator Rack and Pinion System

RRA11

RRA11 Racktuator Rack and Pinion System

The RRA11 is a high speed tubular rack and pinion system designed for dispensing applications. Use of Peek Polymer pinion and bushings result in a lubrication free device.

Features

RRA11

Specs

RRA11
Stroke (mm) 130
Rated Force (N) 3
Max Speed (mm/sec) 300
Max Force (N) 12
Repetitive Accuracy (mm) 0.025

Downloads

RRA11 CAD RRA11 CAD 3D CAD files: IGS,x_b,STEP 2D drawings: pdf,dxf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cables

CM1C3-2000

CM1C3-2000

2m DB9 Serial cable for CM1 series Cool Muscle

Cool Muscle

NEMA11/28mm Cool Muscle Integrated Servo

CM1-X-11S30

Fully closed loop servo system ideal for micro linear actuators, grippers, and other miniature precision devices.

NEMA11/28mm Cool Muscle Integrated Servo

CM1-X-11L30

Fully closed loop servo system ideal for micro linear actuators, conveyors, and other miniature precision devices.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.


RRA17 Racktuator Rack and Pinion System

RRA17

RRA17 Racktuator Rack and Pinion System

The RRA17 is a high speed tubular rack and pinion system designed for dispensing applications. Use of Peek Polymer pinion and bushings result in a lubrication free device. Rack lengths up to 500mm.

Features

RRA17

Specs

RRA17
Stroke (mm) 250
Rated Force (N) 3
Max Speed (mm/sec) 300
Repetitive Accuracy (mm) 0.025

Downloads

RRA17 CAD RRA17 CAD 3D CAD files: IGS,x_b,STEP 2D drawings: pdf,dxf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cables

CM1C3-2000

CM1C3-2000

2m DB9 Serial cable for CM1 series Cool Muscle

Cool Muscle

NEMA 17/42mm Cool Muscle Integrated Servo

CM1-X-17S30

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

NEMA17/42mm Cool Muscle Integrated Servo

CM1-X-17L30

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.

Tamagawa

NEMA17/42mm, 50W

TS4742

Part of Tamagawa's TBL-V series of motors.


RRAK17 Racktuator Rack and Pinion System

RRAK17

RRAK17 Racktuator Rack and Pinion System

The RRAK17 Rack and Pinion Actuator is designed for heavier loads than its RRA17 counterpart.

Features

RRAK17

Specs

RRAK17
Stroke (mm) 100
Rated Force (N) 25
Max Speed (mm/sec) 500
Repetitive Accuracy (mm) 0.025

Downloads

RRAK17 CAD RRAK17 CAD 3D CAD files: IGS,x_b,STEP 2D drawings: pdf,dxf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cables

CM1C3-2000

CM1C3-2000

2m DB9 Serial cable for CM1 series Cool Muscle

Cool Muscle

NEMA17/42mm Cool Muscle Integrated Servo

CM1-X-17L30

Fully closed loop servo system ideal for pick and place, conveyors, photonic's stages, label feeders, or peristaltic pumps.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.

Tamagawa

NEMA17/42mm, 50W

TS4742

Part of Tamagawa's TBL-V series of motors.


RRA23 Racktuator Rack and Pinion System

RRA23

RRA23 Racktuator Rack and Pinion System

The RRA23 Rack and Pinion Actuator is designed for heavier loads. It is ideal in tight spaces and applications like lane diversion or light pressing applications requiring torque control.

Features

RRA23

Specs

RRA23
Stroke (mm) 500
Rated Force (N) 90
Max Speed (mm/sec) 200
Repetitive Accuracy (mm) 0.025

Downloads

RRA23 CAD RRA23 CAD 3D CAD files: IGS,x_b,STEP 2D drawings: pdf,dxf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cables

CM1C3-2000

CM1C3-2000

2m DB9 Serial cable for CM1 series Cool Muscle

Cool Muscle

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.

Tamagawa

NEMA23/56.4mm, 100W

TS4746

Part of Tamagawa's TBL-V series of motors.

NEMA23/56.4mm, 200W

TS4747

Part of Tamagawa's TBL-V series of motors.


RRAD23 Racktuator Dual Rack and Pinion System

RRAD23

RRAD23 Racktuator Dual Rack and Pinion System

The RRAD23 Dual Rack and Pinion Actuator is designed for unique applications where symmetric or lengthy actuation is required.

Features

RRAD23

Specs

RRAD23
Stroke (mm) 150
Rated Force (N) 90 (combined)
Max Speed (mm/sec) 200
Repetitive Accuracy (mm) 0.012

Downloads

RRAD23 CAD RRAD23 CAD 3D CAD files: IGS,x_b,STEP 2D drawings: pdf,dxf
Actuator Brochure Actuator Brochure Specs and dimensions for most of our actuators.

Options

Cables

CM1C3-2000

CM1C3-2000

2m DB9 Serial cable for CM1 series Cool Muscle

Cool Muscle

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23S30

Fully closed loop servo system for pick and place, conveyors, lifters, entry systems, machine setup, rapid feeders, and other precision devices.

NEMA 23/56mm Cool Muscle integrated servo

CM1-X-23L20

Fully closed loop servo system ideal for moving heavier loads with accuracy on ball screw actuators and belt drives. Mate to a planetary gearbox for additional lifting power.

Motor types

C Type Interface

C Type Interface

Programmable serial interface option. Includes programmable I/O and analog interface options as well.

P Type Interface

P Type Interface

Pulse interface option for Step & Direction or CW/CCW pulse input

R Type Interface

R Type Interface

Programmable serial interface option including multi-axis co-ordinated motion functions.

Tamagawa

NEMA23/56.4mm, 200W

TS4747

Part of Tamagawa's TBL-V series of motors.




Blueprint of Intelligent Linear Systems including Cool Muscle Integrated Servo and W series belt drive actuator

Single and Multi-axis Belt Drive Actuators

Myostat's M Series belt drive actuators are avaiable in a variety of sizes and lengths, handling loads up to 35KG, with a positioning repeatability of 0.05mm.

The carriage employs a self-cleaning wheel and steel rod guidance system, resulting in long running life and smooth, quiet motion. 75mm or 95mm pitch pulleys drive a steel reinforced belt capable of up to 350N for force, with speeds up to 4m/s.

Specifications can be found here.

Contact us to pick the right solution for you new project.






CM1-C-17L30C-RBST3

Integrated Networkable Actuators

Every actuator we provide is available with an optional Cool Muscle integrated servo motor complete with all the features and benefits of an integrated servo system.

Myostat provides a truly modern robotic sub assembly.




Blueprint of intelligent actuator system

Lubrication Free Alternatives

The RD, RL and RRA line of actuators are lubrication and maintenance free systems, designed for long life with a minimal amount of maintenance.

Modern technologies and polymer composites, such as Peek, are used for bearing and gear surfaces and are backed by rigorous testing and established life cycles.





From Small to Big

Myostat offers a full range of linear systems. From microscope actuators with 5mm of stroke to belt drive systems capable of 5m of stroke. Myostat has a full range of actuators sure to suit your application, including Lead Screw, Ball Screw, Rack and Pinion and Belt Driven actuators.  Both Rod Style and Rodless are available. With a full range of actuators to suit your application Myostat has the solution that fits.









Multi-Axis Gantry Systems

Myostat now offers two, three, and four axis gantry systems based on belt drive actuators.

Adaptable to a wide range of applications, gantry style automation is an inexpensive, quiet and reliable solution for pick and place, sorting, loading/unloading, and packaging related applications.

Offered with intergrated or traditional servo options along with motion programming and a variety of touch panel options, Myostat can provide a complete system, ready to work for you.





RRAD23 Dual Rack Actuator

Myostat Motion Control now offers the RRAD23 Dual Rack Actuator.

The RRAD23 Dual Rack Actuator offers reciprocating racks up to 500mm long in a space efficient design.  Available with stepper motors, servo motors, or the Cool Muscle integrated servo motor, the RRAD23 can be used in gripper assemblies, lane diverters, label applications, and other applications requiring quick motion.

The RRAD23-12-250-23L20 has Serial, CanOPEN, and Ethernet/IP interfaces for flexible inclusion into your next machine.  Contact Myostat Motion Control for more information on this new mechatronic assembly.
